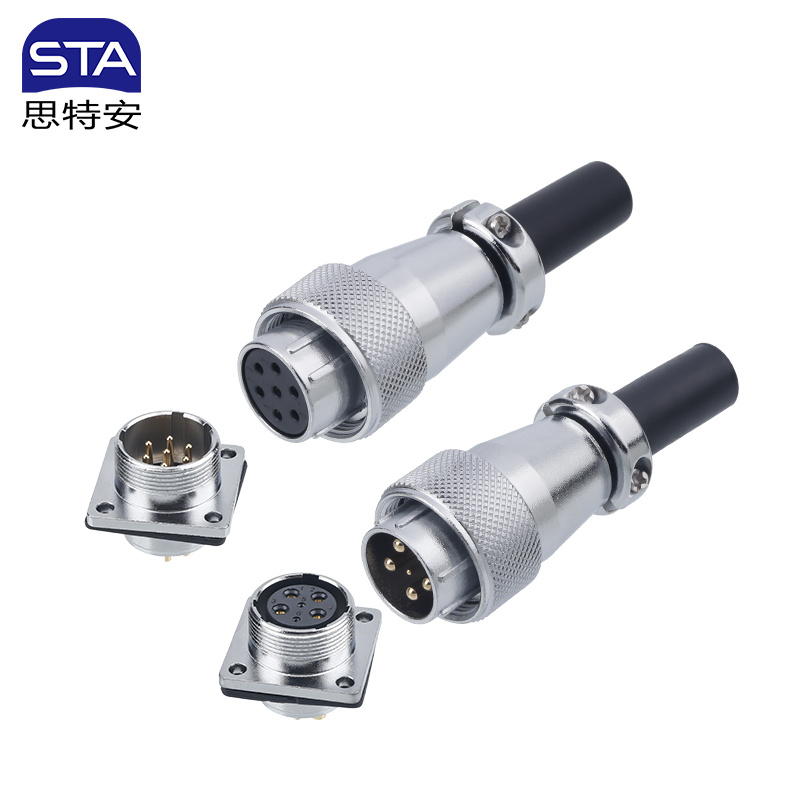

SW20 Connector: IP67 Metal Threaded Shielded Aviation Plug & Receptacle

Name: SW20 Connector: IP67 Metal Threaded Shielded Aviation Plug & Receptacle
Brand: Connecteur STA
SKU: SW20
Availability: InStock
Rating: 5 (1 reviews)

No.SW20

The SW20 Connector from STA Connector is a mid-sized, high-performance IP67 metal threaded aviation plug designed for reliable signal integrity and power transmission in challenging industrial environments. Featuring robust zinc alloy construction and a secure threaded coupling mechanism, the SW20 ensures environmental sealing even with temporary immersion. With pin configurations ranging from 2 to 15 pins and integrated 360-degree shielding, this series is ideal for industrial automation, sensor systems, and equipment requiring superior EMI/RFI protection.

Coupling Type

Threaded Locking Mechanism

IP Rating

IP67 Waterproof & Dustproof

Material (Shell)

Zinc Alloy (Chrome Plated)

Pin Configuration

2, 3, 4, 5, 6, 7, 8, 9, 12, 15 Pin

Insulation Material

PPS Thermoplastic (260℃ Heat Resistance)

Contact Material

Phosphor Bronze with Gold Plating

Temperature Range

-40°C ~ +85°C

Connector Type:

Straight Male Plug with PVC Sleeve

Straight Female Plug with PVC Sleeve

Square Flange Mount Male Receptacle

Square Flange Mount Female Receptacle

Pins:

2pin

3pin

4pin

5pin

6pin

7pin

8pin

9pin

10pin

12pin

14pin

DEMANDER UN DEVIS

Description
Video

Key Advantages

Superior IP67 Ingress Protection: Provides complete protection against dust and temporary water immersion, ensuring operational reliability in demanding outdoor, marine, or washdown industrial settings.
Effective EMI/RFI Shielding: Designed with 360-degree shielding to protect sensitive signals from electromagnetic interference, guaranteeing data integrity and system stability in electrically noisy industrial environments.
Robust Metal Construction: Features a durable chrome-plated zinc alloy shell that offers superior mechanical strength and corrosion resistance compared to standard plastic connectors.
High-Quality Gold-Plated Contacts: Utilizes phosphor bronze contacts with gold plating to guarantee low contact resistance, excellent conductivity, and a long lifespan of over 500 mating cycles.
Versatile Pin Configurations: Offers a wide range of pin counts (2,3,4,5,6,7,8,9,12,15pin), providing flexible solutions for connecting complex multi-signal and power looms within a single, secure connector body.

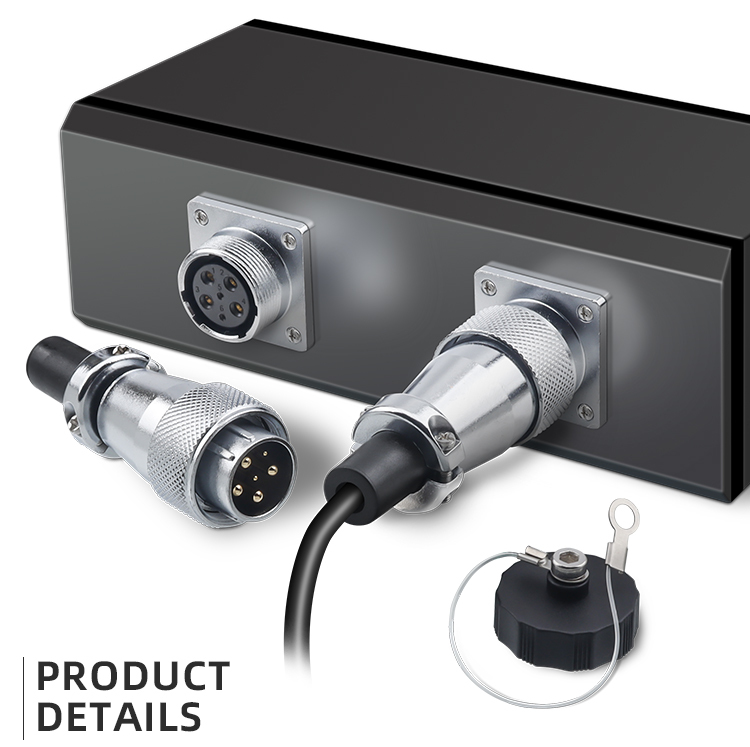

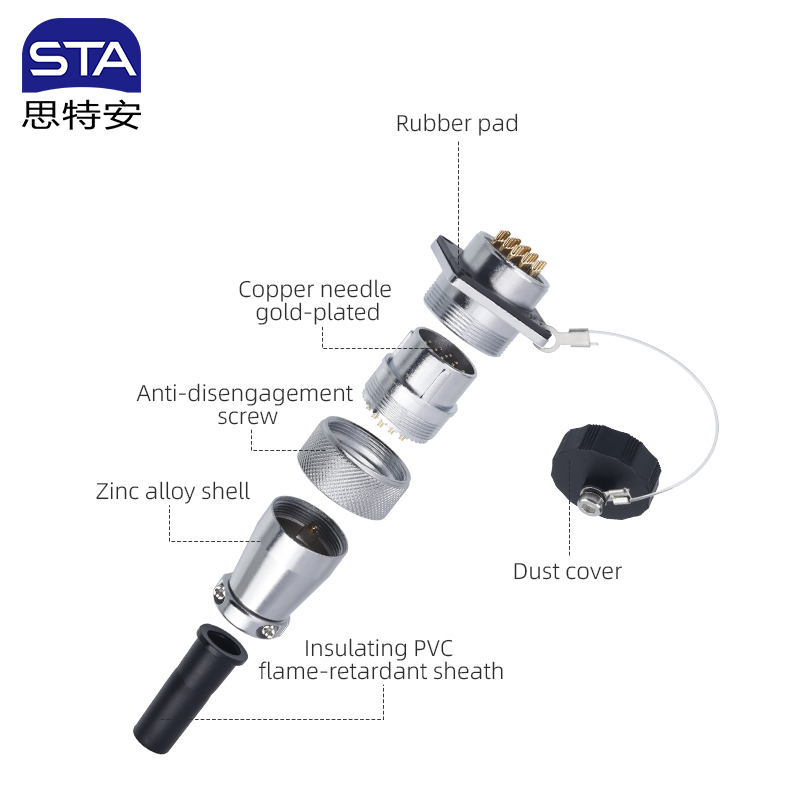

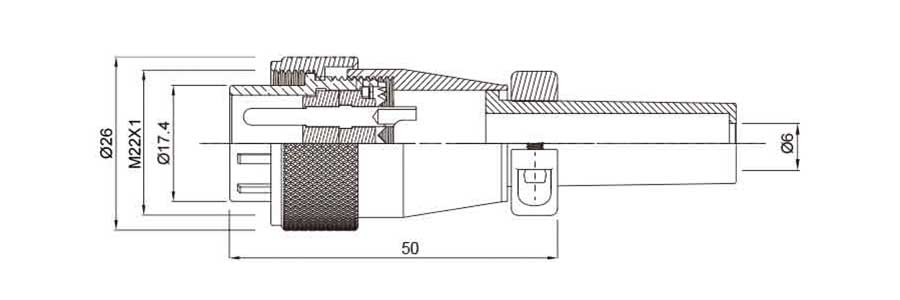

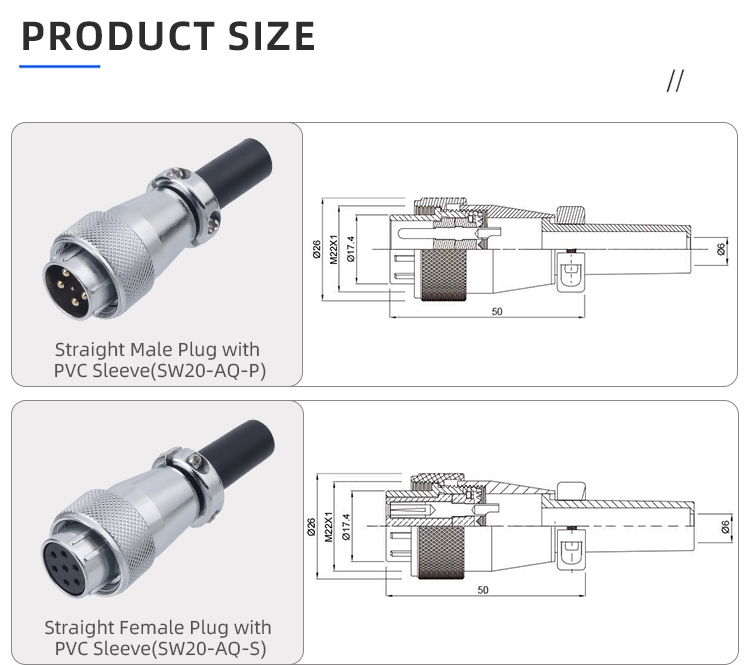

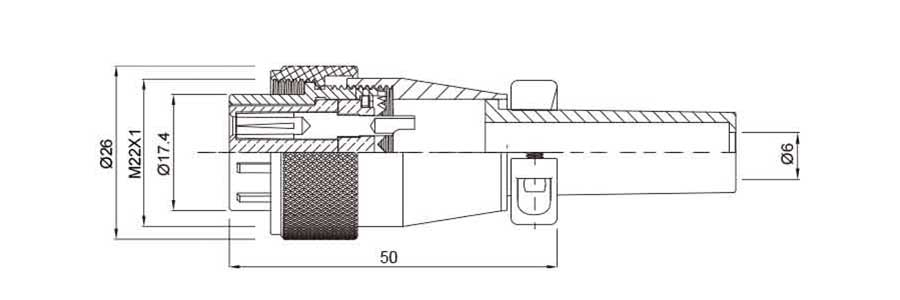

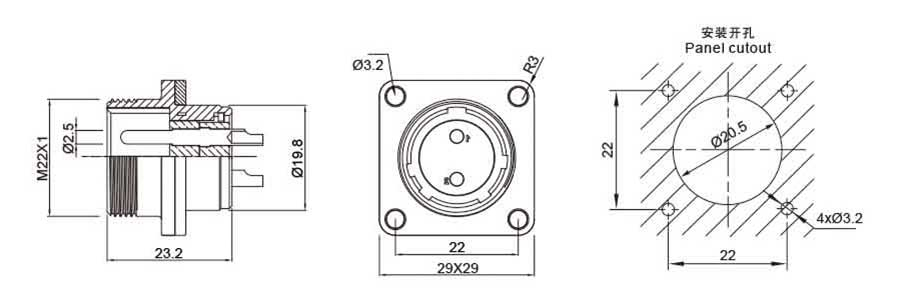

Connector drawings

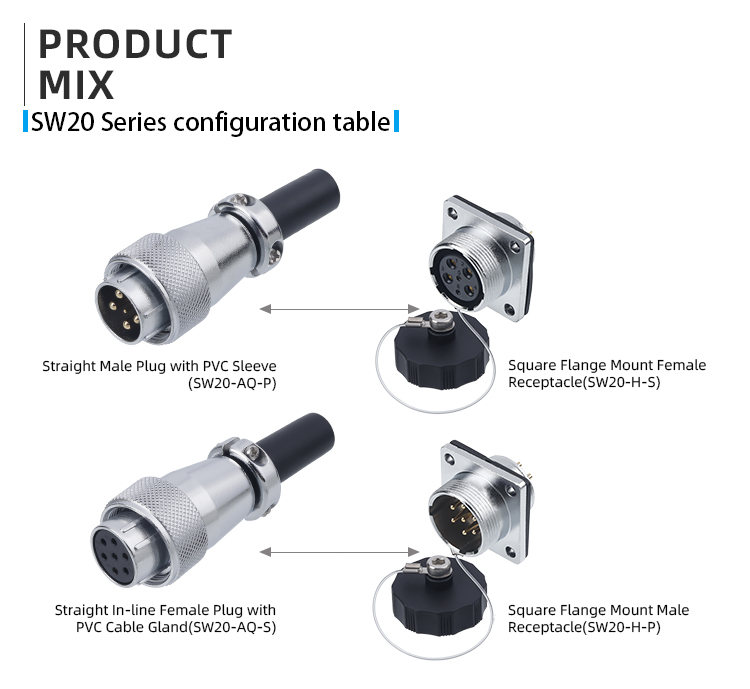

Straight Male Plug with PVC Sleeve	Straight Female Plug with PVC Sleeve

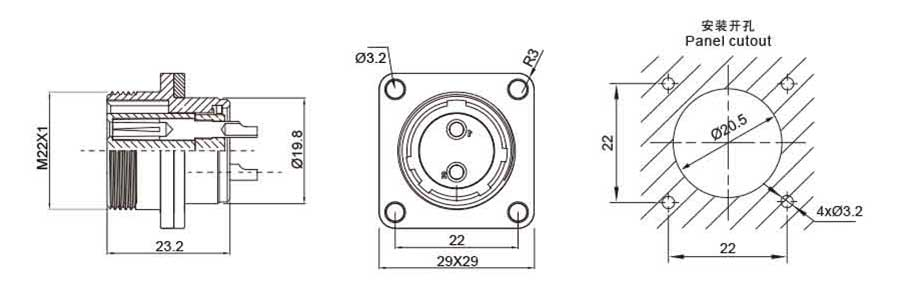

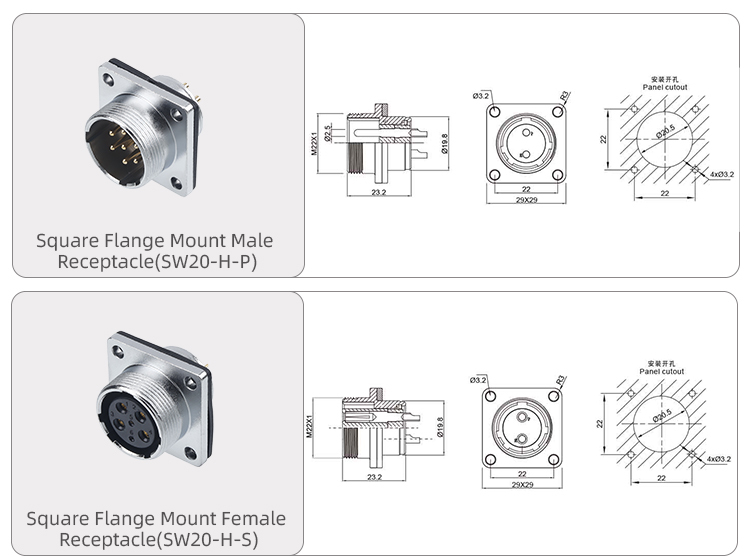

Square Flange Mount Male Receptacle	Square Flange Mount Female Receptacle

Pins	2	3	4	5	6	7	8	9	10	12	14
Insulator Front View
Rated current(A)	25	25	25	10	5×2 25×4	10	5	5	5	5	5
Contact diameter(mm)	φ2.5×2	φ2.5×3	φ2.5×4	φ1×5	φ1×2 φ2.5×4	φ1.5×7	φ1×8	φ1×9	φ1×10	φ1×12	φ1×14
Operating voltage(AC.V)	500	500	500	500	500	500	400	400	400	400	400
Pressure resistance (AC.V) 1 min	1500	1500	1500	1500	1500	1500	1200	1200	1200	1200	1200
Contact resistance(mΩ)	1	1	1	2.5	5×2 1×4	2.5	5	5	5	5	5
Insulation resistance(MΩ)	2000

Versatile Application Scenarios

Industrial Automation Systems: Shielded connections for PLCs, sensors, and actuator networks.
Outdoor Data Acquisition: Sealed interfaces for environmental monitoring and data logging stations.
Test & Measurement Equipment: Reliable multi-pin links for portable field testing apparatus.
Robotics Feedback Systems: Shielded signal transmission for precise motor control and sensors.
Machine Vision Systems: Ensuring stable, interference-free power and data links for industrial cameras.

FAQ

Q: What is the primary use case for the SW20 series?
A: The SW20 series is ideal for general industrial use where both high IP rating (IP67) and EMI shielding are required, such as connecting sensors to control cabinets in wet environments.
Q: How does the SW20 series compare to the WF16 series?
A: The SW20 is slightly larger (20mm shell vs 16mm) and offers a few different pin count options (e.g., 12 and 15 pins) to accommodate a wider range of wiring requirements.

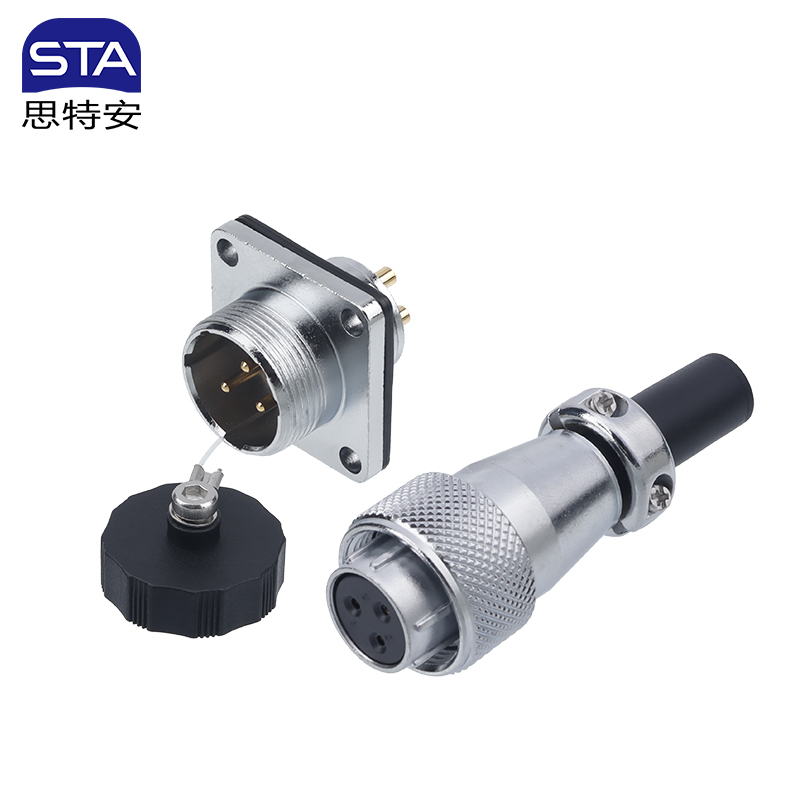

Q: Does STA Connector offer dust caps for the SW20 series?
A: Yes, we provide compatible IP67 dust caps for both the cable plug and the panel receptacle to maintain the seal when unmated.
