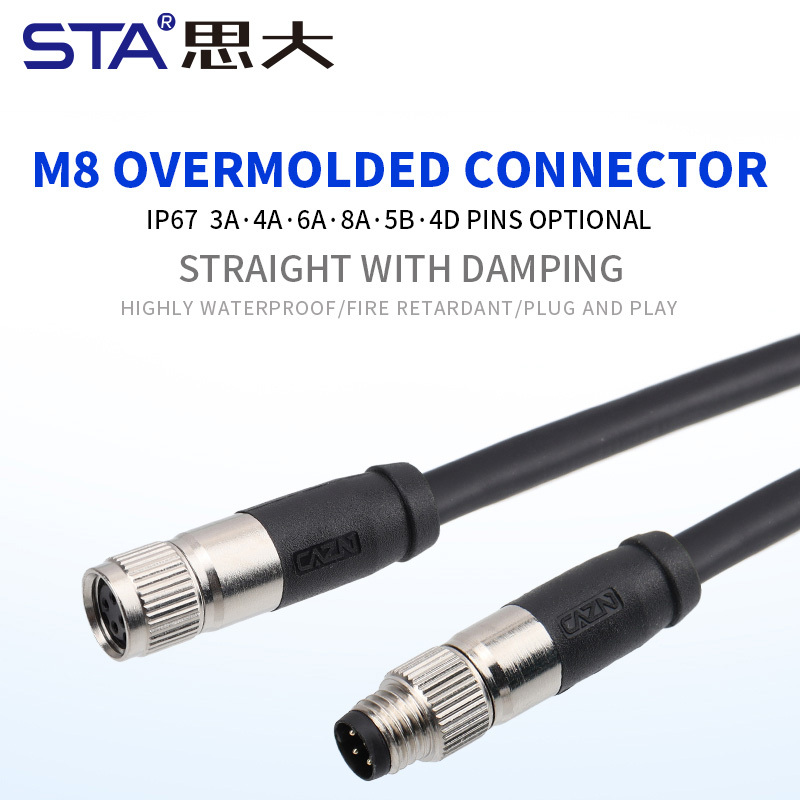

M8 Straight Male/Female Overmolded Plug with Damping 3 4 5 6 8 Pins

Name: M8 Straight Male/Female Overmolded Plug with Damping 3 4 5 6 8 Pins
Brand: Connecteur STA
Availability: InStock
Rating: 5 (1 reviews)

The STA M8 Straight Male/Female Overmolded Plug with Damping is a high-performance connector designed for automotive, industrial, and electronic applications. Compliant with IEC 61076-2-104 standards, it improves driving comfort, handling performance, and safety while providing stable and reliable electrical connections. Featuring customizable wire harness length and interface options, shield tube options (PVC, PU, TF, PE), and robust overmolded construction, this connector ensures waterproof, fire-retardant, and vibration-damping performance. Built with brass nickel-plated or gold-plated shell, epoxy/rubber sealing, zinc alloy contacts, and TPU/PVC molding, it guarantees low contact resistance and stable signal transmission in demanding environments.

Connector Type

M8 Straight Male/Female Overmolded Plug with Damping

Cable Outlet

Straight / Right Angled

Pin Count

3 / 4 / 5 / 6 / 8 pins

Gender

Male / Female

Cable Type

PVC / PU / TF / PE (optional)

Rated Voltage

1–3A (depending on pin count)

Contact Resistance

≤10mΩ

Insulation Resistance

≥100MΩ

Temperature Range

-25°C ~ +85°C

Insulator Material

PA66

Socket

Front Mount Solder Type, Back Mount Solder Type and PCB board type

Shell Material

Brass nickel-plated / Zinc alloy nickel-plated

Contact Material

Brass / Phosphorus copper gold-plated

M5 Overmolded Plug:

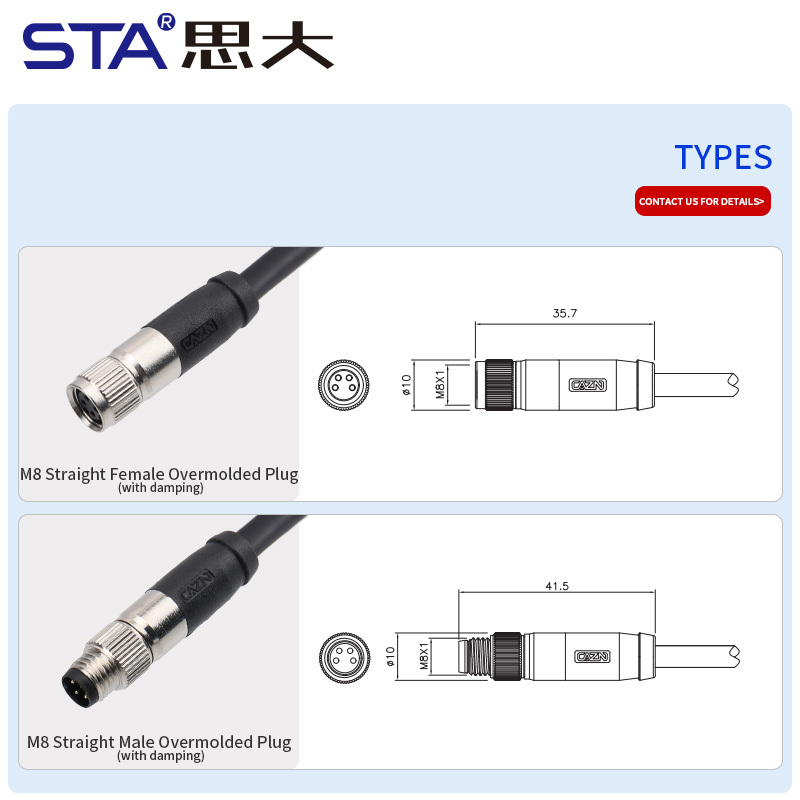

M8 Straight Male Overmolded Plug (with damping)

M8 Straight Female Overmolded Plug (with damping)

Pins/Code:

3 pin-A Code

4 pin-A Code

5 pin-B Code

4 pin-D Code

6 pin-A Code

8 pin-A Code

Cable Length:

Customized

Molding material:

PVC

TPU

DEMANDER UN DEVIS

Description
Video

Product Advantage

Damping and Vibration Resistance

Designed with integrated damping to reduce vibration impact, improving stability and reliability in automotive and industrial applications.

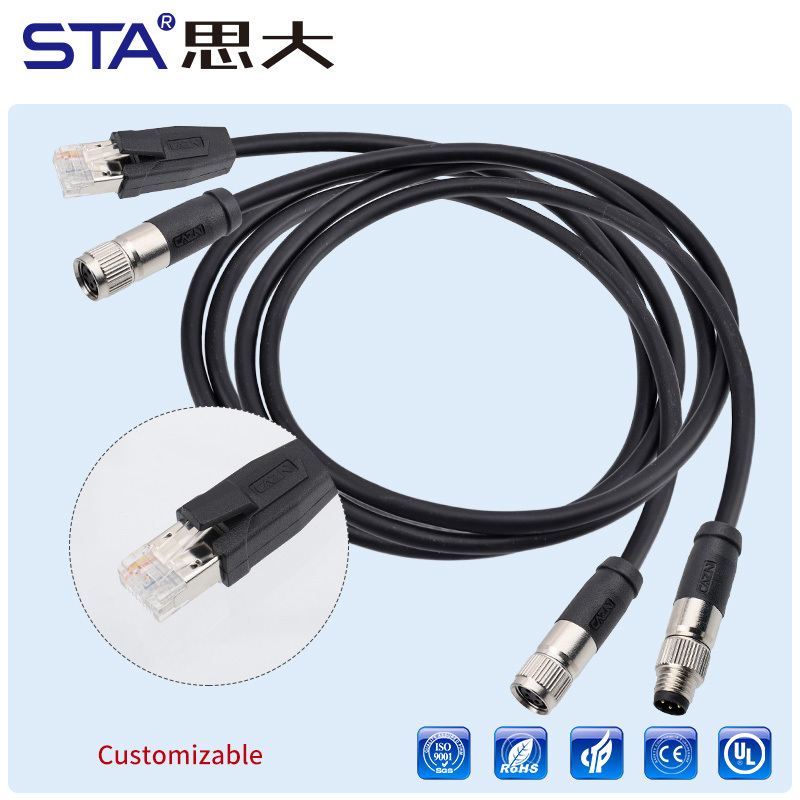

Customizable Wire and Interfaces

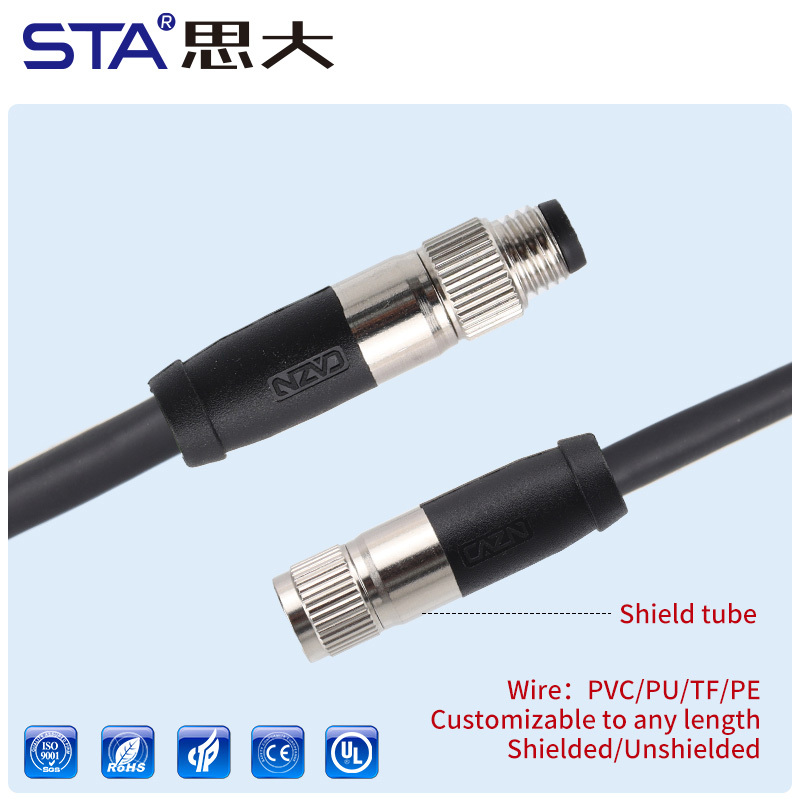

Supports PVC, PU, TF, and PE shield tubes, with customizable wire lengths and interface types for flexible integration.

Waterproof and Fire-Retardant Construction

IP67-level waterproofing and fire-retardant materials ensure safe operation in harsh industrial and automotive environments.

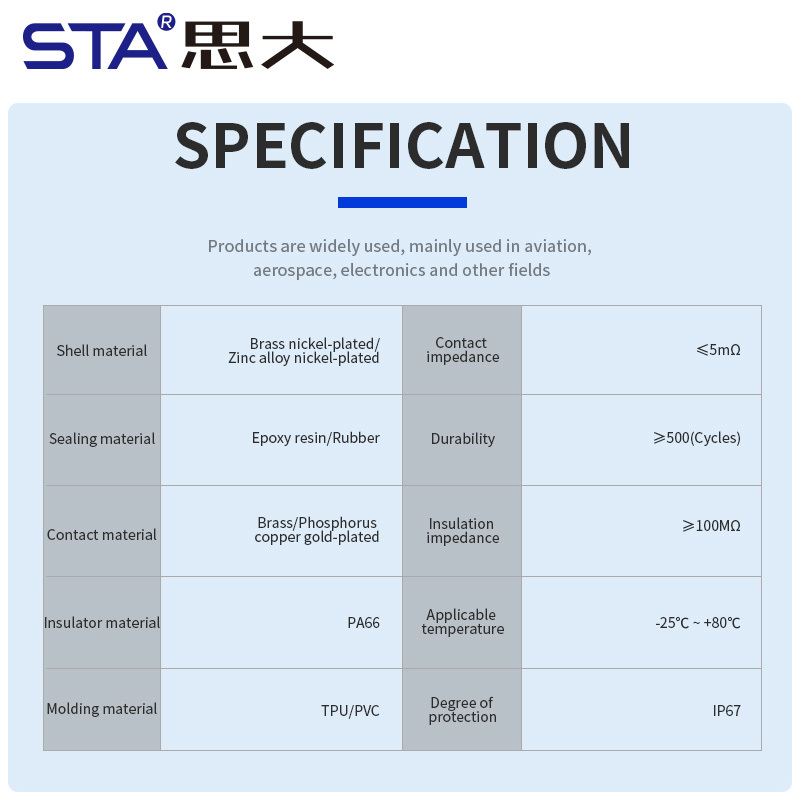

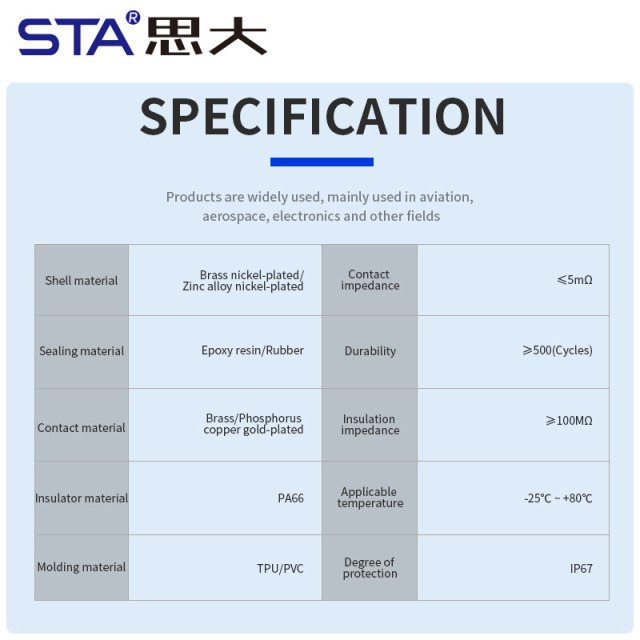

High-Quality Materials

Shell: Brass nickel-plated or gold-plated; Sealing: Epoxy/Rubber; Contacts: Zinc alloy nickel-plated; Insulator: PA66; Molding: TPU/PVC, providing corrosion resistance and long-term durability.

Low Contact Resistance and Stable Transmission

5 mΩ contact impedance and 3A–1.5A rated voltage (DC/AC 60V–30V) enable stable power and signal delivery for reliable system performance.

Product Use

Automotive Applications

Enhances driving comfort, stability, and safety by providing stable power and signal transmission in vehicles.

Industrial Machinery

Suitable for vibration-prone machinery requiring reliable, damped connections for sensors and actuators.

Robotics and Automation

Ensures stable and low-resistance connections in robotic systems and automated control circuits.

Harsh Environment Installations

Waterproof, fire-retardant, and vibration-damping design supports outdoor or industrial environments.

Custom Electrical Systems

Customizable wire lengths and interface options allow seamless integration into specialized electronic applications.
