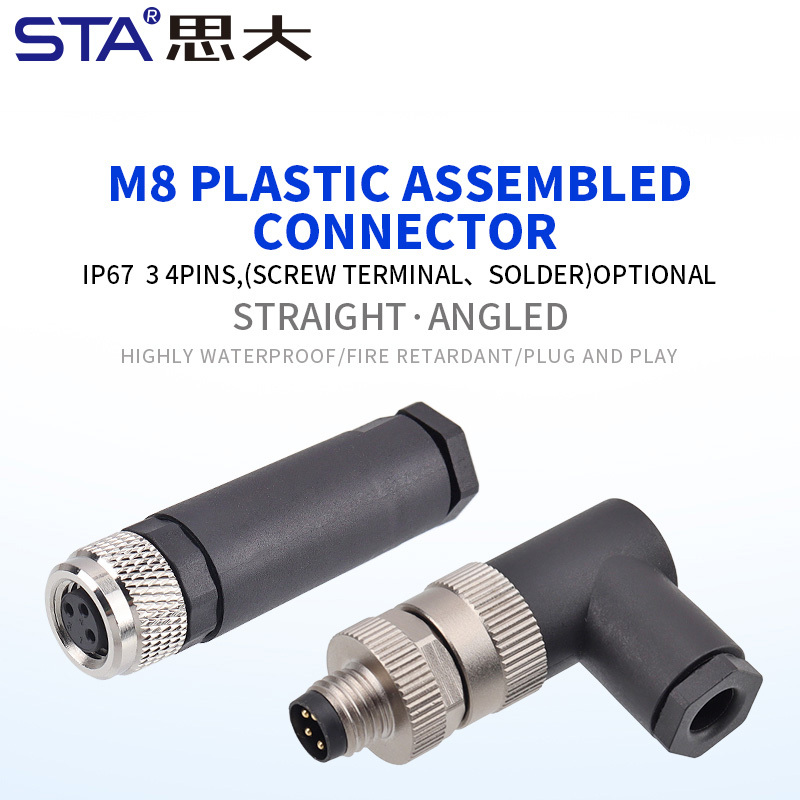

M8 Connector Straight / Angled Male / Female Plastic Assembled Plug Screw Terminal Type 3/4 Pins

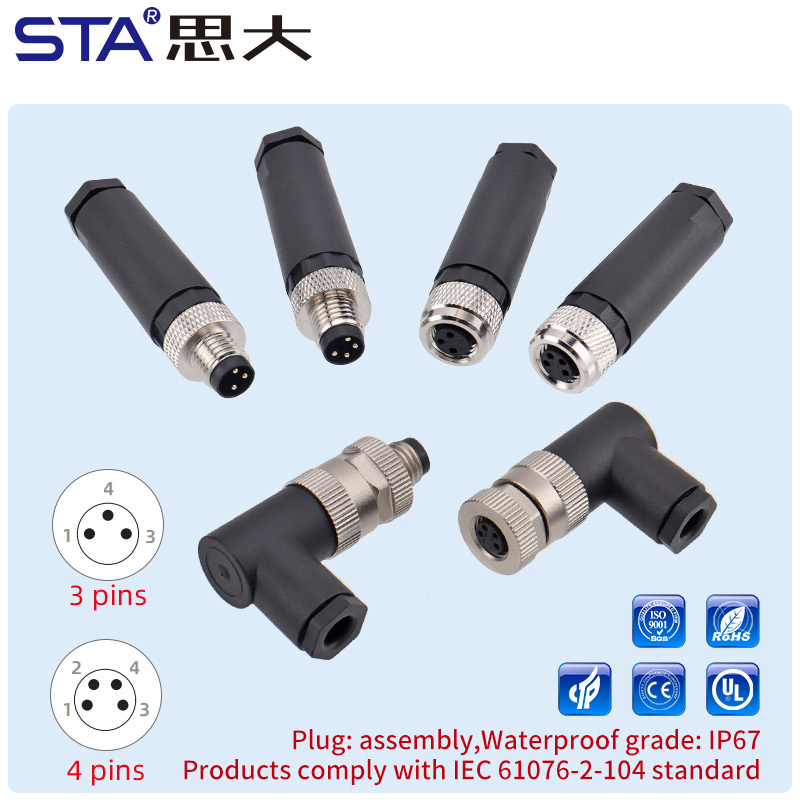

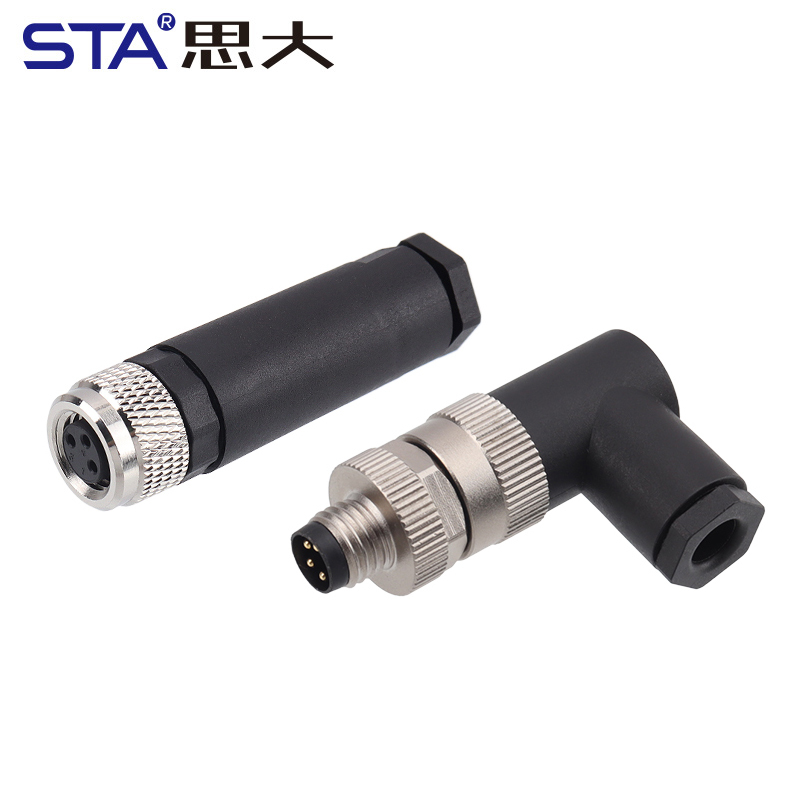

The STA M8 Plastic Assembled Plug Connector provides a reliable and easy-to-install solution for industrial sensors, automation equipment, and LED systems. Available in straight or angled versions with 3 or 4-pin configurations, it adopts a screw terminal design for quick field wiring. The connector meets IEC 61076-2-104 standards and complies with RoHS / CE / UL certifications. Featuring IP67 waterproof sealing, nickel-plated shell, and PA66 insulation, this connector offers durability, vibration resistance, and long service life for indoor and outdoor environments.
Connector Type
M8 Plastic Assembled Plug, Screw Terminal Type

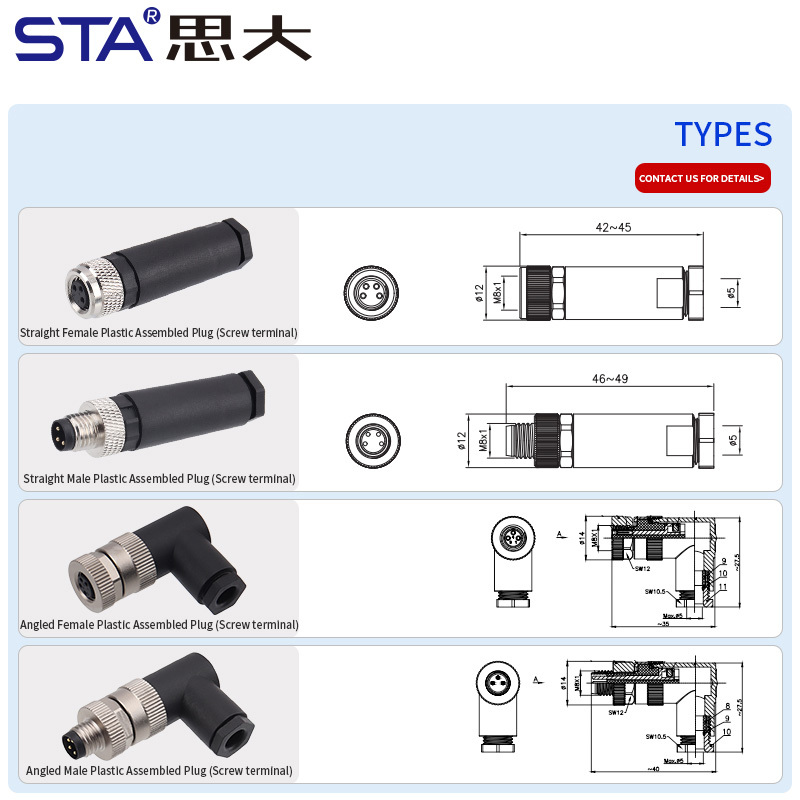

Cable Outlet
Straight / Right Angled
Pin Count
3 / 4 pins
Gender
Male / Female
Cable Type
PVC / TPU / PUR
Rated Voltage
1.5A–3A (depending on pin count)
Contact Resistance
≤10mΩ
Insulation Resistance
≥100MΩ
Temperature Range
-25°C ~ +85°C
Conductor size
24AWG-26AWG
Socket
Front Mount Solder Type, Back Mount Solder Type and PCB board type

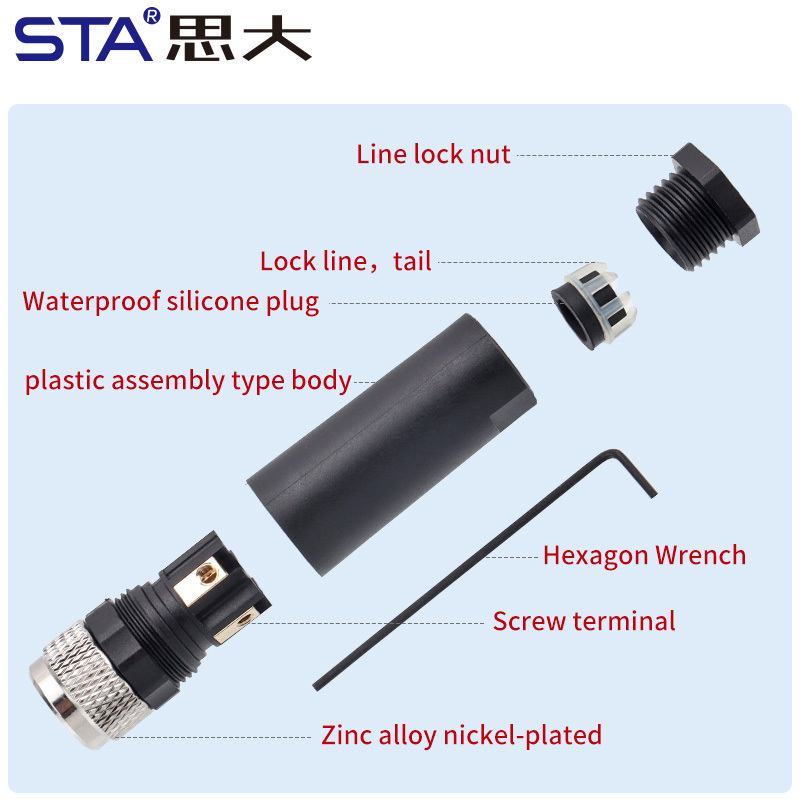

This M8 connector adopts a precision-machined metal shell, offering strong mechanical durability and excellent EMC protection. The corrosion-resistant housing ensures long-term reliability in automation lines, outdoor equipment, and vibration-intensive conditions. Ideal for industrial signal connections where stability and robustness are required.
2. Secure Solder-Terminated Electrical Contact
Reliable solder wire termination ensures solid electrical conductivity and minimizes signal loss. This improves transmission quality for industrial sensors, motors, and control systems. The solder-design enhances durability compared to crimp-style connectors in high-movement environments.
3. IP67 Waterproof & Dustproof Protection
Engineered to high-grade IP67 sealing, the connector prevents ingress of water, oil, and dust — perfect for factory automation, outdoor lighting, AGV robots, and machinery. Stable performance even in humidity, rain, and industrial lubrication environments.
4. Multiple Pin Configurations (3-8 Pins)
Supports 3-pin, 4-pin, 5-pin, 6-pin, and 8-pin options to meet diverse data, signal, and low-power transmission needs. Compatible with standard M8 sensor cable systems and widely used in PLCs, encoders, proximity switches, and machine vision systems.
5. Fast Assembly & Standard M8 Compatibility
Straight assembled design allows quick wiring and simple field maintenance. The thread-locking interface ensures secure mating and vibration resistance. Fully compliant with IEC M8 interface standards and compatible with major automation brands.
Product Uses
Industrial Sensors and Actuators: Signal and power connection for automation systems.
Control Panels and Machines: Robust screw connection ensures stable performance.
Robotics and Machinery: Withstands vibration and frequent movement.
Outdoor LED Lighting: IP67 waterproof design for long-term outdoor use.
Testing & Measuring Instruments: Provides accurate, stable data connection.
