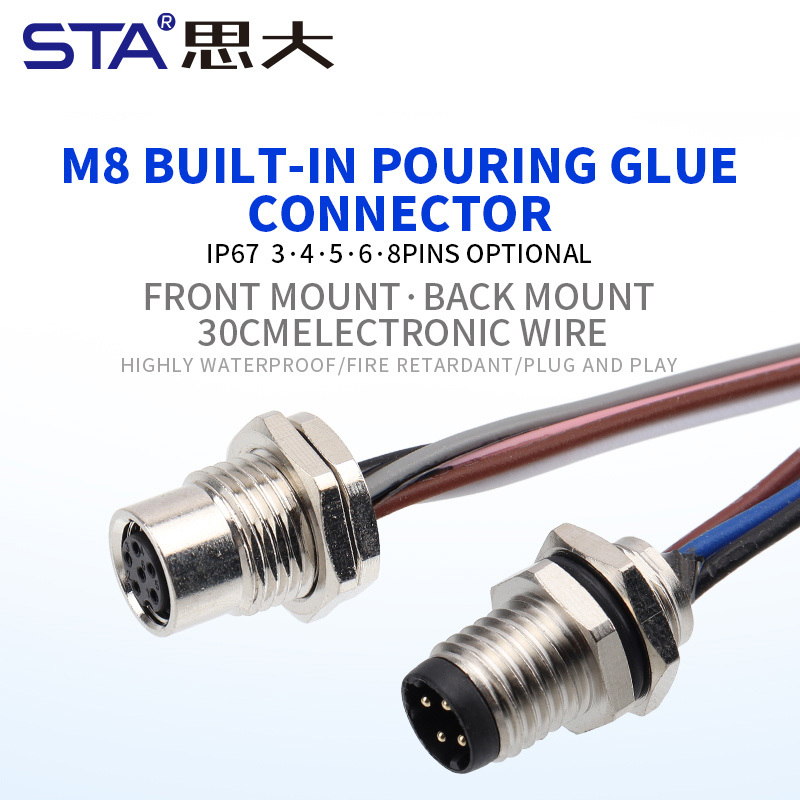

IP67 Waterproof M8 Built-in Pouring Front/Back Mount Glue Plug Connector with 30cm Electronic Wire

Name: IP67 Waterproof M8 Built-in Pouring Front/Back Mount Glue Plug Connector with 30cm Electronic Wire
Brand: Connecteur STA
Availability: InStock
Rating: 5 (1 reviews)

The IP67 Waterproof M8 Built-In Pouring Front/Back Mount Plug Connector with 30cm electronic wire is designed for reliable signal and low-power transmission in harsh industrial environments. Using epoxy potting technology, this connector provides strong moisture resistance, vibration durability, and long-term connection stability. Available in 3/4/5/6/8-pin versions, it supports diverse industrial automation needs including sensors, control units, actuators, and measurement devices. Compact size, pre-terminated leads, and a sealed molded structure ensure secure installation and consistent performance in tight spaces and dynamic applications.

Connector Type

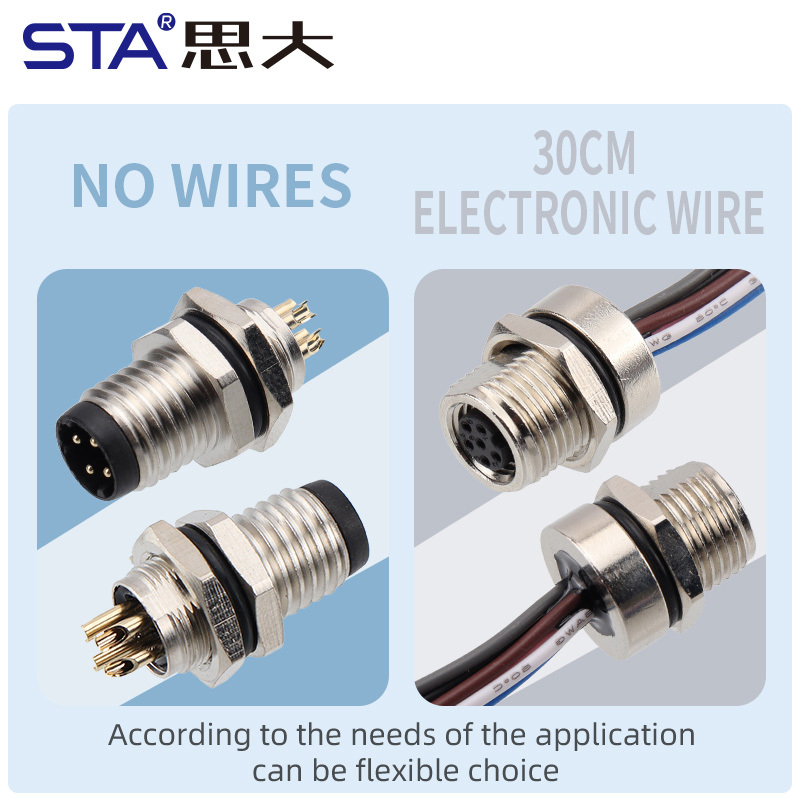

M8 Built-in Pouring Front/Back Mount Glue Connector with 30cm Electronic Wire

Connection Type

Soldering + Glue Pouring (Potting Type)

Pin Count

3 / 4 / 5 / 6 / 8 pins

Gender

Male / Female

Cable Type

PVC / TPU / PUR

Rated Voltage

1–3A (depending on pin count)

Contact Resistance

≤10mΩ

Insulation Resistance

≥100MΩ

Temperature Range

-25°C ~ +85°C

Insulator Material

PA66

Socket

Front Mount Solder Type, Back Mount Solder Type and PCB board type

Shell Material

Brass nickel-plated / Zinc alloy nickel-plated

Contact Material

Brass / Phosphorus copper gold-plated

M5 Overmolded Plug:

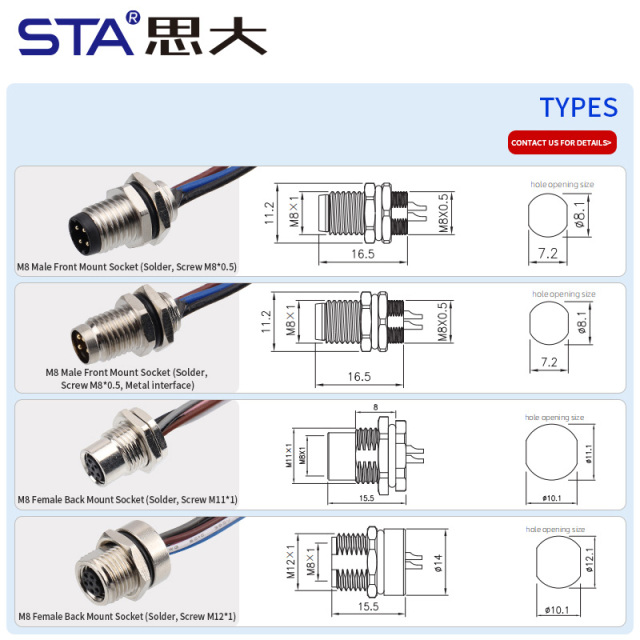

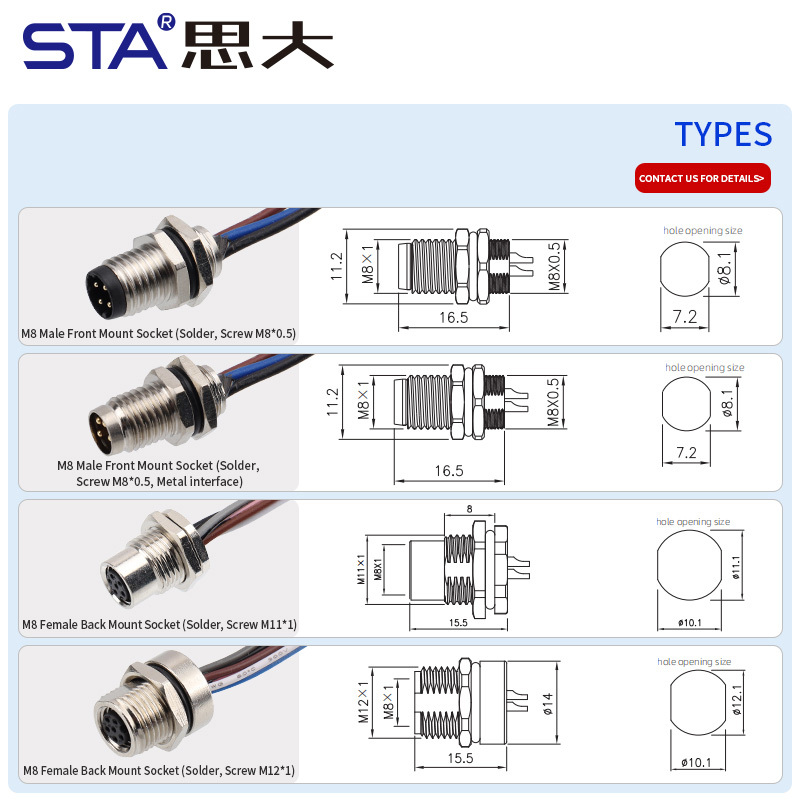

M8 Male Front Mount Socket (Rivet Press needle built-in filling tape line Screw M8x0.5 Metal interface)

M8 Female Front Mount Socket (Rivet Press needle built-in filling tape line Screw M8x0.5)

M8 Female Back Mount Socket (Rivet Press needle built-in filling tape line Screw M8x1 Metal interface)

M8 Male Back Mount Socket (Rivet Press needle built-in filling tape line Screw M8x1)

M8 Male Back Mount Socket (Rivet Press needle built-in filling tape line Screw M11x1)

M8 Female Front Mount Socket (Rivet Pressneedle built-in filling tape line Screw M8x0.5)

M8 Female Front Mount Socket (Rivet Pressneedle built-in filling tape line Screw M8x0.5 bullet type)

M8 Female Back Mount Socket(RivetPress needle built-in filling tape line Screw M10x0.75)

M8 Female Back Mount Socket(RivetPress needle built-in filling tape line Screw M11x1)

M8 Female Back Mount Socket (RivetPress needle built-in filling tape line Screw M12x1)

Pins/Code:

3 pin-A Code

4 pin-A Code

4 pin-D Code

5 pin-B Code

6 pin-A Code

8 pin-A Code

Cable Length:

30cm Wire

Customized

Molding material:

PVC

TPU

DEMANDER UN DEVIS

Description
Video

Product Advantages

1. Epoxy-Potted Design for Ultimate Waterproof Protection

This connector utilizes a built-in epoxy pouring design that fully seals internal solder joints, preventing moisture, dust, and vibration intrusion. Its IP67 protection level ensures long-term durability in outdoor, humid, and industrial environments where standard connectors may fail.

2. Pre-Wired for Fast Installation

Comes with a 30cm pre-terminated cable for plug-and-play wiring. Eliminates manual crimping or soldering, improving installation efficiency for field technicians and OEM assembly teams. Ideal for fast replacement and maintenance in automation systems.

3. Front or Rear Panel Mount for Flexible Layouts

Supports both front-mount and back-mount panel installation, allowing engineers to design compact and neat wiring layouts. Perfect for space-limited machinery, sensor boxes, automation panels, and embedded devices.

4. High Vibration Resistance & Strong Mechanical Bonding

The potting process strengthens internal joints and reduces wire fatigue from movement or vibration. This ensures stable connectivity in mobile robotics, conveyor systems, and vibrating production equipment.

5. Multi-Pin Support & Industrial Compliance

Available in 3-8-pin options for different signal and power requirements. Complies with IEC 61076-2-104 standards and supports common industrial automation signal interfaces, ensuring compatibility and long-term reliability.

Product Uses

Industrial Sensor Networking
Ideal for temperature, proximity, and optical sensors in automation systems.
Robotics & Motion Systems
Provides stable wiring for robot arms, AMRs/AGVs, and linear actuators.
Instrument & Measurement Devices
Designed for monitoring systems requiring stable low-signal transmission.
Outdoor & Harsh-Environment Equipment
Reliable for outdoor meters, environmental monitoring stations, and pumps.
